Siemens PLC Controlled Pet Treats Dog Chews Bone Food Making Extruder Machine

Pet Treats Dog Chews Bone food making Extruder Machine

1. Description for Pet Treats Dog Chews Bone food making Extruder Machine :

Dog chew stick takes starch as raw materials with scientific configuration and was extruded from co-extruder, it can be made into many kind of shapes such as stick, bone, bi-color, bi-flavor, etc. This kind of food not only provide protein, fat, vitamin, nutrition for dogs, but also satisfy the dog nature hobby.
Pet dog food making machine produces chips/stick/twist shapes,double/various-colors food with filling. Pet chewing food has the effect on molar/clean mouth/clean tooth. It also can reform enteric function, lighten the bad smelly. The whole processing line designs logically,installs agility,fits adustabllity.

2. Flow chart of dog chews production line:

Mixing system---Extrusion system--- Cutting---Drying system---Cooling system---Packing system.

3. Parameter for pet chews extruder:

4. Main equipments description:

Flour Mixer Output: 60kg/load Power: 4kw/380V Dimension: 1200 x 800 x 1200mm Weight: 230kg	Flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives. Stainless steel structure, especially the parts in contacting with the raw material or products; Cover small area, easy cleaning, and operate stably.
Screw Conveyor Driving Power: 1.1kw Vibrating Power: 0.03kw Dimension: 2900 x 1000 x 3100mm	Screw Conveyor is used to the convey the materials to the feeder of the extruder. Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Name & Parameters	Description	Picture
SRD-300 Single Screw Extruder Output: 150kg/hr Extruder Dimension: 3450 x 900 x 2200mm Feeding System: Feeding power: 0.75kw Feeding screw diameter: 55mm Feed Screw Speed: 0-150rpm Driving & Extruding System: Main Motor Power: 45kw Main Screw Length: 3250mm Main Screw Diameter: 100mm Main Screw Speed: 0-250rpm Heating Zone: 5 zone Heating Power: 2kw x 7 = 14kw (7 heating rings) Control System: Electric Cabinet Dimension: 630 x 470 x 1740mm	SRD-300 Single Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by one screw composed by sectional modules for the following functions: forward and backward transport, mixing, cooking and forming. Ø PLC and 10” touch screen with friendly interface to control the whole line, not one or two single equipment; Ø While any parts got problems, the fault alarm will be shown on the touch screen; Ø Password can be set on the touch screen to avoid any misoperation by the workers; Ø The structure is made by carbon steel, and the cover body, mixing tank and all the parts in contacting with the raw material are made by stainless steel; Ø A wide range of products can be obtained in a variety of different ways, and can configure various dies simply and rapidly; Ø Two sets of Single Screw Extruder can work together to make double-color pet treats, also can connect Twisting Device for twist pet treats; Ø The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost; Ø The screw is all made by 38CrMoALA alloy, and the surface is being processed nitrogen treatment, so the hardness could reach 55hrc, which is hard and strong, and has longer service life; Ø Barrel is divided into 4 temperature zones, and each zone is controlled separately; Ø Auto-temperature control system; make the temperature controlling more direct viewing and the parameter more precise; Ø Equipped wit cooling system for cooling the barrel and screw; Ø Control cabinet has three kinds of protections: overload protection, overcurrent protection and overheat protection. Ø Nice appearance with streamline modelling.

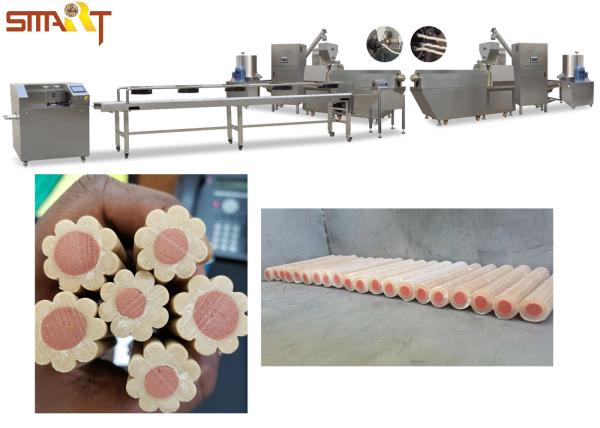

5. Machine and sample picture:

Before sale services:

1). Provide the free consultation of the equipment.
2). Provide the standard device and the flow chart.
3). According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1). Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2). Welcome to visit our factory or the domestic clients' factory.
3). Inspect the machine before leaving the factory.

After sale services:
1). Oversea install and debug the equipment.
2). Train the first-line operator.
3). Provide the basic formula.
4). Operation/ Service/ Maintenance Manual: Provided In English.
5). We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $70 daily subsidy per person.

4). Operation/ Service/ Maintenance Manual: Provided In English.
5). We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $70 daily subsidy per person.

Video link:

Double-color pet treats machine:

If any inerest for this machine, please send us inquiry freely, quotation can be sent within 24 hours!
